| Panel PC information | |
| Model Number | AXD-15PPC-A2 |

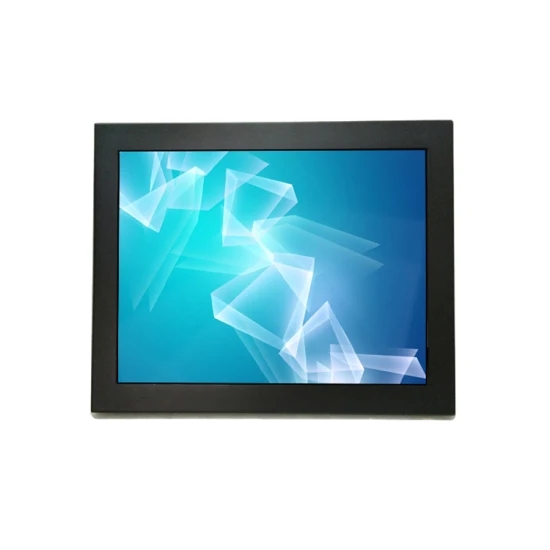

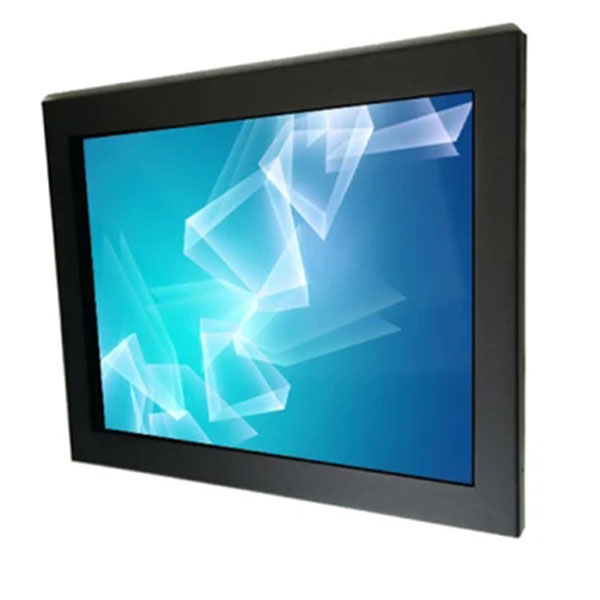

| 15.0” Touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Touch Panel | Industrial Capacitive Flat Screen |
| Touch response time | 8ms (typical) |
| Optimal (native) Resolution | 1024×768 |
| LCD panel Pixel pitch | 0.264 x 0.264 mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 400 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 700:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±80° or 160° total |
| Vertical (up/down) | 80°(up), 80°(down) or 160° total |
| CPU |
Soldered onboard Intel® Atom™D2550 1.86GHz Processor; DDR3 800MHz SDRAM ; Chipset: Intel® D2550 + ICH10M |
| storage | 16G SSD up to 64 G |
| Serial Ports | 4 x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports | 2 x USB external ports ; 6 six USB internal ports |
| LAN | 2 x LAN RJ-45 connector |
| Net | 1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power In | 1 x 4-pin connector |
| Video Port | 1 x Video Output |
| Watch Dog Timer | 1~255 levels reset |
| Internal Sockets & Connectors | 1 x Compact Flash socket (reserved for OEM project) |
| Power Specification | DC 12V |
| Working Environment | |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 75°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Shock | Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions | |
| Mounting Type | Embedded Installation |
| Mechanical dimensions | 376 x 303.5 x 52.7 mm |
| Weight (Net) | 5.5 kgs/ piece |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details |
1x 15.0 inch Industrial Touch Panel PC ; Packed in1 piece/carton with protection foam Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. Intel® Atom™ D2550 1.86GHz Processor
4. 15 ” 1024 x 768 Resolution Color TFT LCD Display
5. Fully IP65 Waterproof Compliant Stainless Steel Chassis
6. Supp orts Wide Range DC Power Input (12V)
