| Display Specifications | |
| Display |

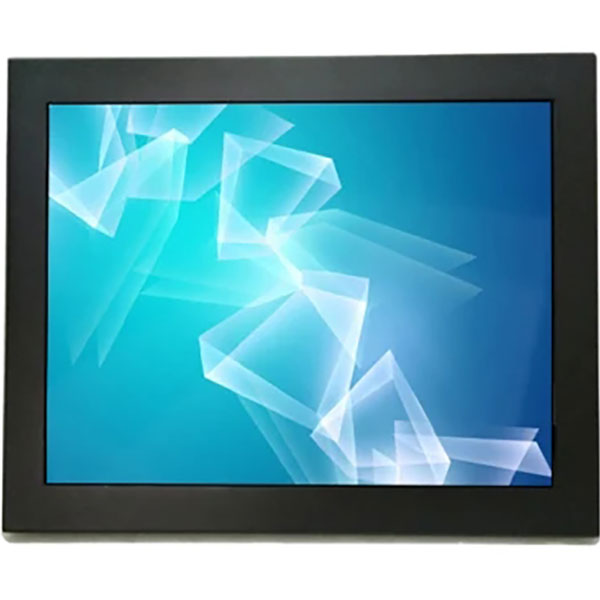

15″ Color TFT Panel mount touch Monitor |
| Model Name |
AXD-15OPPM-T2 |
| Active Display Area (mm) |
304.1(H)x304.1(V) |
| Pixel Pitch (mm) |
0.297(H)x0.297(V) |
| Resolution (Pixel) |
XGA (1024X768) 262K/16.2MColor |
| Brightness (CD/m^2) |
400nits |
| Contrast Ratio |
500:1 |
| Viewing Angle (CR >=10) |
160/140 |
| Power consumption |
13.3W typical, normal operation |
| Touch Screen |
Resistive;RS232/USB(Optional) |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D |
| Power Input |
DC 12V,4A48W |
| Mechanical Specifications | |
|
Construction |
Steel Metal chassis & Black Color |
|
Dimensions |
398.0 x 295.0x 48 (mm) |
|
Mounting |
Edge fixing holes, vesa mounting on the backside |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature |
-10~70℃ |
| Storage Temperature |
-20~80℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
15” Panel mount capacitive touch LCD Monitor with VGA input and power adapter |
