| Display Specifications |
|
| Display |

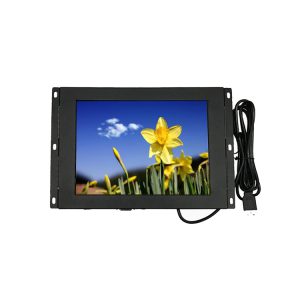

8.4″ Color TFT Industrial Monitor |
| Model Name |
AXD-084IPN1P1 |
| Active Display Area (mm) |
170.4(H)x127.8(V) |
| Pixel Pitch (mm) |
0.213(H)x0.213(V) |
| Resolution (Pixel) |
SVGA (800X600) 262K/16.2M Color |
| Brightness (CD/m^2) |
220cd/m^2;350cd/m^2 |
| Contrast Ratio |
500:1 |
| Viewing Angle (CR >=10) |
150/150 |
| Power consumption |
3.3W typical, normal operation |
| Touch Screen |
Resistive;RS232/USB(Optional) |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
| Power Input |
DC 12V,@4A 48W |
| Mechanical Specifications |
|
| Construction |
Aluminum front bezel &Black Color |
| Dimensions |
210.0 x 147.4x 22.0 (mm) |
| Mounting |
Embedded ,Wall Mounting Optional |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature |
-30~80℃ |
| Storage Temperature |
-30~80℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
8.4” industrial touch Monitor with VGA input and power adapter |
