| Display Specifications |
|

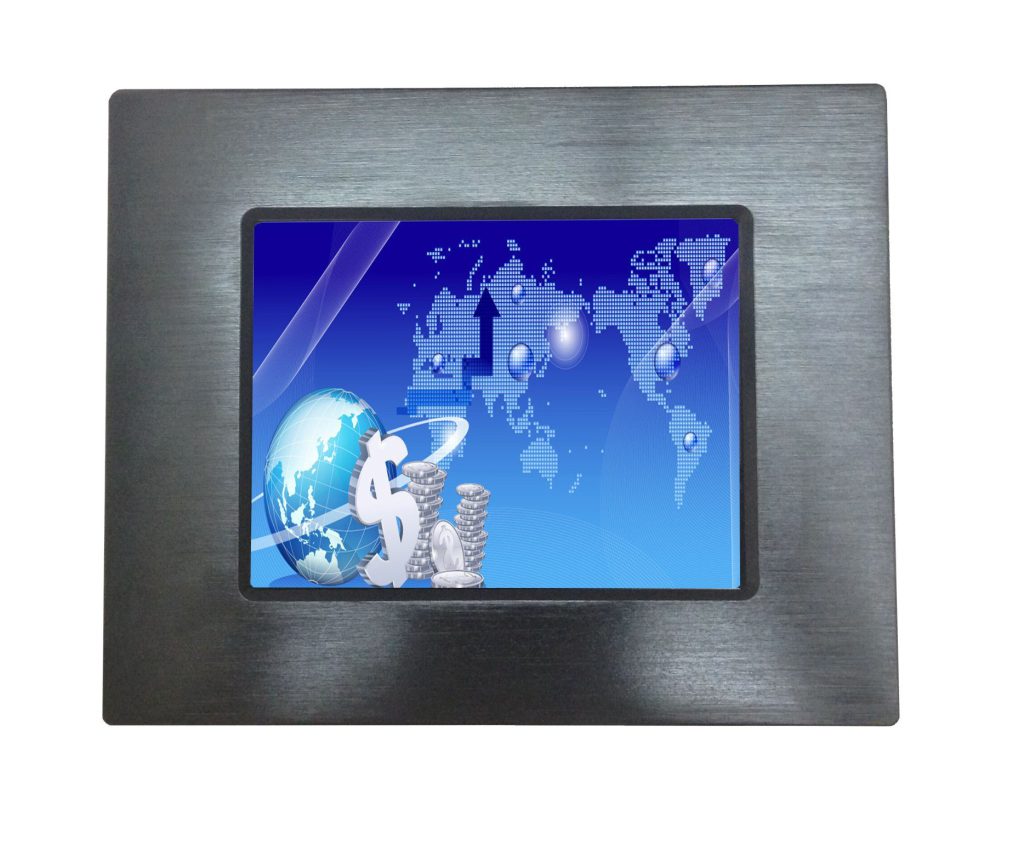

| Display | 6.5″ Color TFT Industrial t Monitor |
| Model Name | AXD-06OPIPN1-P2 |
| Active Display Area (mm) | 132.48 (H)x99.36(V) |
| Pixel Pitch (mm) | 0.207(H)x0.207(V) |
| Resolution (Pixel) | VGA (640X480);16.2M/262 colors |
| Brightness (CD/m^2) | 800cd/m^2 |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 140/120 |
| Power consumption | 6.32 W typical, normal operation |
| Touch Screen | Resistive ;USB options, no touch in this case |

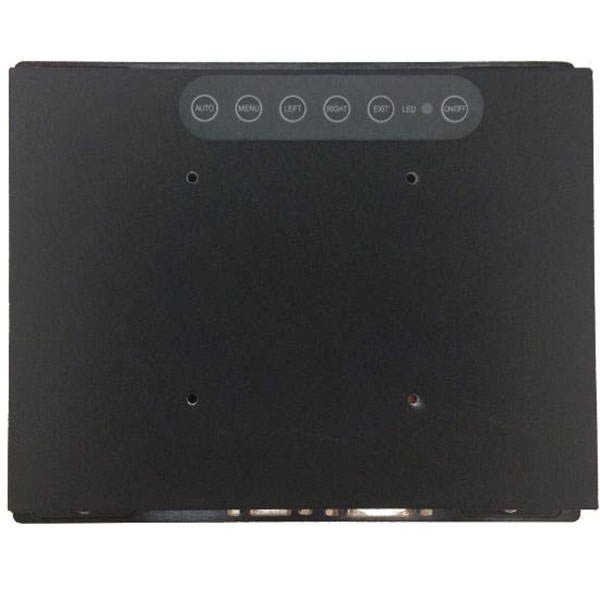

| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications |
|
| Construction | Aluminum front bezel &Black Color |
| Dimensions | 192.0x 165.0x 37.0 (mm) |
| Mounting | Embedded ,vesa 75×75(100×100) Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC-4A |
| Environment Specifications |
|
| Operating Temperature | -20~80℃ |
| Storage Temperature | -30~80℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 6.5” industrial sunlight readable Monitor with VGA input and power adapter |
