| Panel PC information | |
| Model Number | AXD-05OPIPPC |

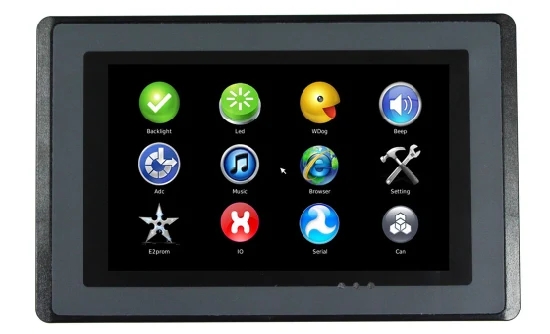

| 5.0” Mini Touch panel pc | |
| Case/Bezel Color | Black front bezel |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 16:9 |
| Touch Panel | Industrial 4 wire Resistive Flat Screen |
| Touch response time | 10ms (typical) |
| Optimal (native) Resolution | 800 x 480 |
| LCD panel Pixel pitch | 0.264 x 0.264 mm |
| LCD panel Colors | 16.2 million |
| LCD panel Brightness | 300 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 500:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±60° or 120° total |
| Vertical (up/down) | 60°(up),60°(down) or 120° total |
| CPU |
Cortex-A8 1GHz |
| storage | 512MDDR3 SDRAM( Andriod is 1G) |
| Serial Ports | 4 x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports | 2 x USB external ports |
| LAN | 1 x LAN RJ-45 connector/WIFI options |
| NandFlash | 256M Flash |
| DC Power In | 1 x 4-pin connector |
| Extended storage | 32G for SD card |
| Optional interfaces | CAN/RS485 |
| Supporting O.S | Linux3.2;Andriod 4.4;WinCE6.0 |
| Power Specification | DC 9V-24V |
| Working Environment | |
| Temperature | Operating: 0°C to 50°C ;Storage -10°C to 65°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions | |
| Mounting Type | Embedded Installation |
| Weight (Net) | 1.5kgs/ piece |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details |
1x 5.0 Inch Mini Touch Panel PC; Packed in 10 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15working days for order production |
