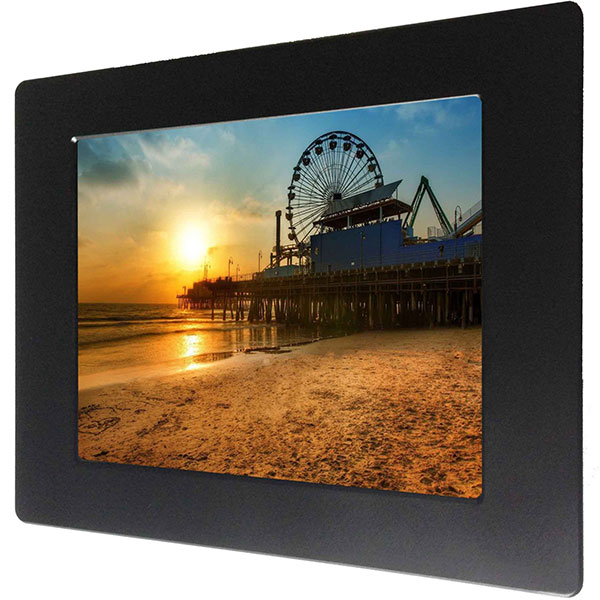

4:3 12.1 Inch Color TFT Screen Display Black Housing with Panel Mount

Brand :

Screen Size:12
Screen format: 4:3
Display Resolution(pixel):800X600
Contrast Ratio:700:1
Brightness:400cd/m^2
Storage temperature : -30℃~85℃
Input signal: VGA DVI
Power Input: DC 12V
Product status: Stock

Display Specifications

Display

12.1″ Color TFT Industrial Monitor

Model Name

AXD-12OPIPPC-T1

Active Display Area (mm)

246 (H)x184.5(V)

Pixel Pitch (mm)

0.3075(H)x0.3075(V)

Resolution (Pixel)

SVGA (800X600) 262K/16.2M Color

Brightness (CD/m^2)

400cd/m^2 (1000cd/m^2 Optional)

Contrast Ratio

600:1

Viewing Angle (CR >=10)

160/140

Power consumption

15W typical, normal operation

Touch Screen

Resistive ;capacitive Touch ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

IP 64 sealing  front bezel &Black Color

Dimensions

351.0 x 265.0x 56.0(mm)

Mounting

Embedded ,Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-20~75℃

Storage Temperature

-30~80℃

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

12.1” industrial Monitor with VGA input and power adapter
