23.3W 15 Inch IP65 Industrial Touch LCD Monitor 500CD/M2 for Outdoor CNC 12VDC

Brand :

Model NO: AXD-15OPIPPM07-T1
Screen Size: 15 Inch
Display Resolution(pixel): 1024×768
Contrast Ratio:800:1
Brightness (CD/m^2): 500 cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc

Display Specifications

Display

15″ Color TFT Industrial LCD monitor with panel mount

Model Name

AXD-15OPIPPM07-T1

Active Display Area (mm)

304.1(H)x264.1(V)

Pixel Pitch (mm)

0.294(H)x0.294(V)

Resolution (Pixel)

XGA (1024X768) 262K/16.2M Color

Brightness (CD/m^2)

500cd/m^2

Contrast Ratio

800:1

Viewing Angle (CR >=10)

160/160

Power consumption

8.6 W typical, normal operation

Touch Screen

5 wire Resistive touch USB options,capacitive touch optional

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Steel Metal chassis & Black Color

Dimensions

398.0 x 295.0x 48 (mm) (mm)

Mounting

 VESA Mounting 75×75

Power source

AC 100~240V/ 12V DC adapter

Environment Specifications

Operating Temperature

-20~80ºC

Storage Temperature

-30~85ºC

Rating

Facilitate installation of the demolition,solid portfolio

Features and Advantages
1. 15.0 inch resisitive touch with alumium design, with IP65 treatment , is new and popular
touch technology for CNC industry , Automatic equipments etc

2. Slim and simple frame to mount all the LCD kits in one , which is easily installed

3. industrial control board supports the displays working 24 hours, VGA, DVI signal inputs

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5. 8-40v wide voltage could be supported , 12 V DC is typical voltage for the monitor.

6, water proof sealing in the front , protecitve the screen from harsh environment.

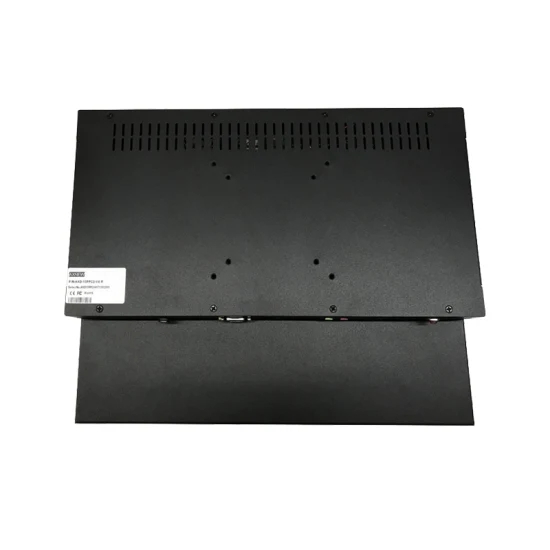

23.3W 15 IP65 Industrial Touch LCD Monitor 500CD/M2 for Outdoor CNC 12VDC

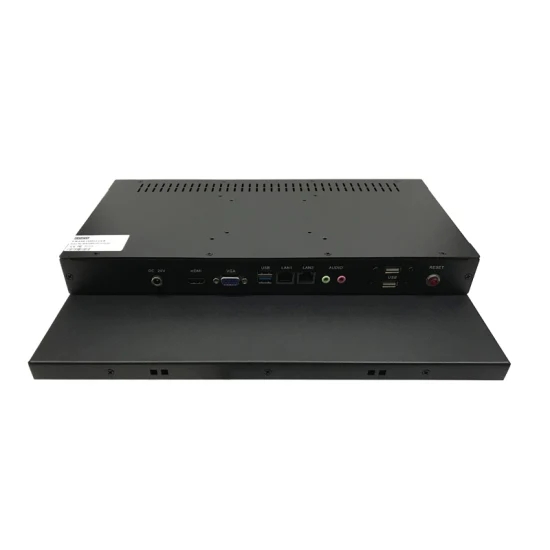

23.3W 15 IP65 Industrial Touch LCD Monitor 500CD/M2 for Outdoor CNC 12VDC

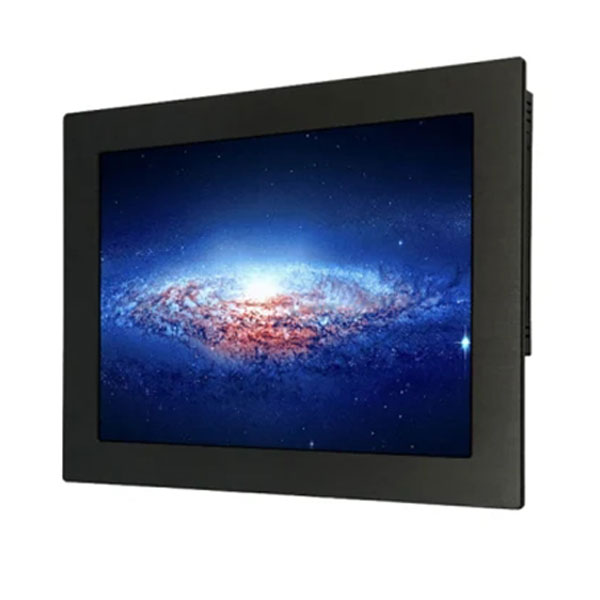

23.3W 15 IP65 Industrial Touch LCD Monitor 500CD/M2 for Outdoor CNC 12VDC
