Panel PC information |
|
|
Model Number |
AXD-17PPC-V4C2 |
|

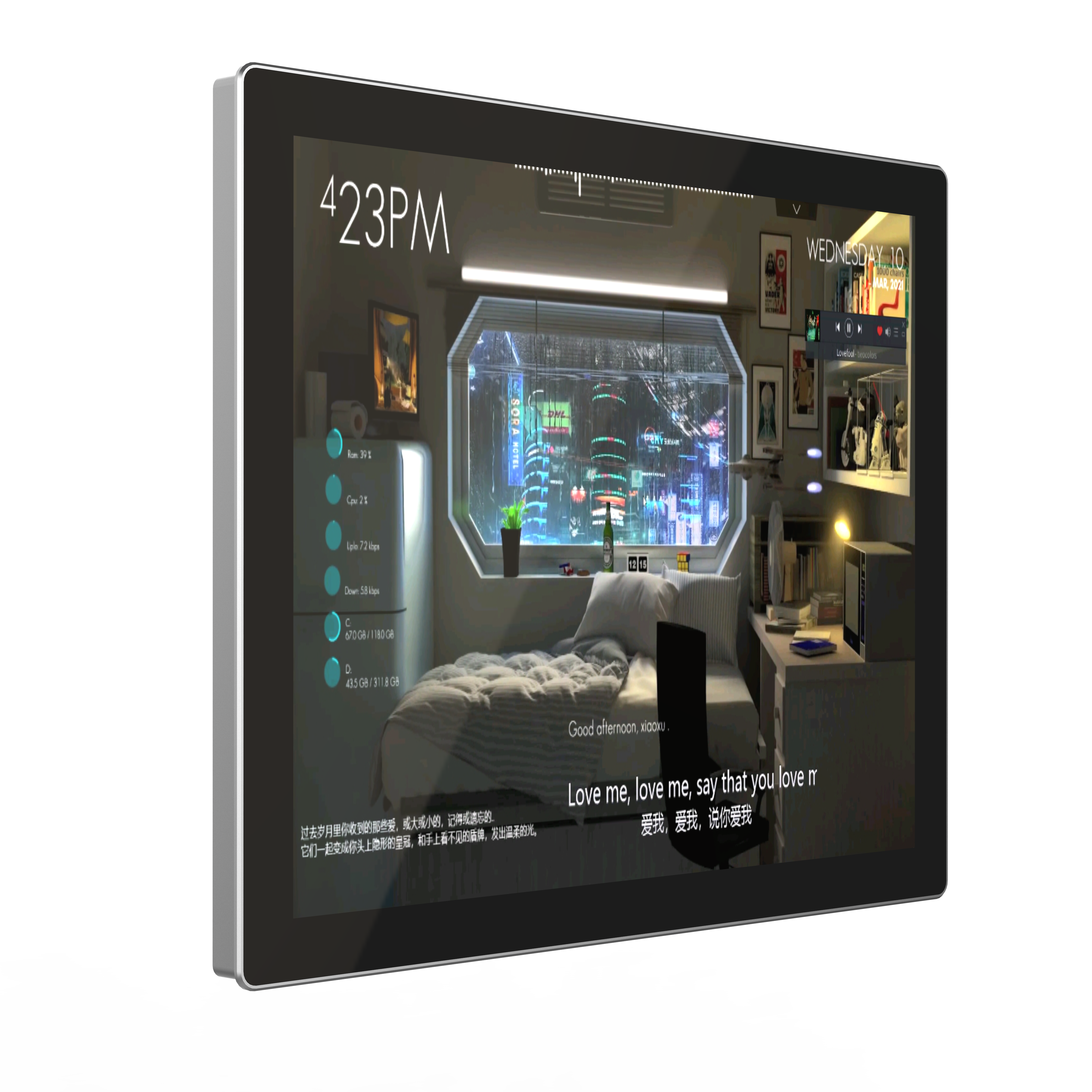

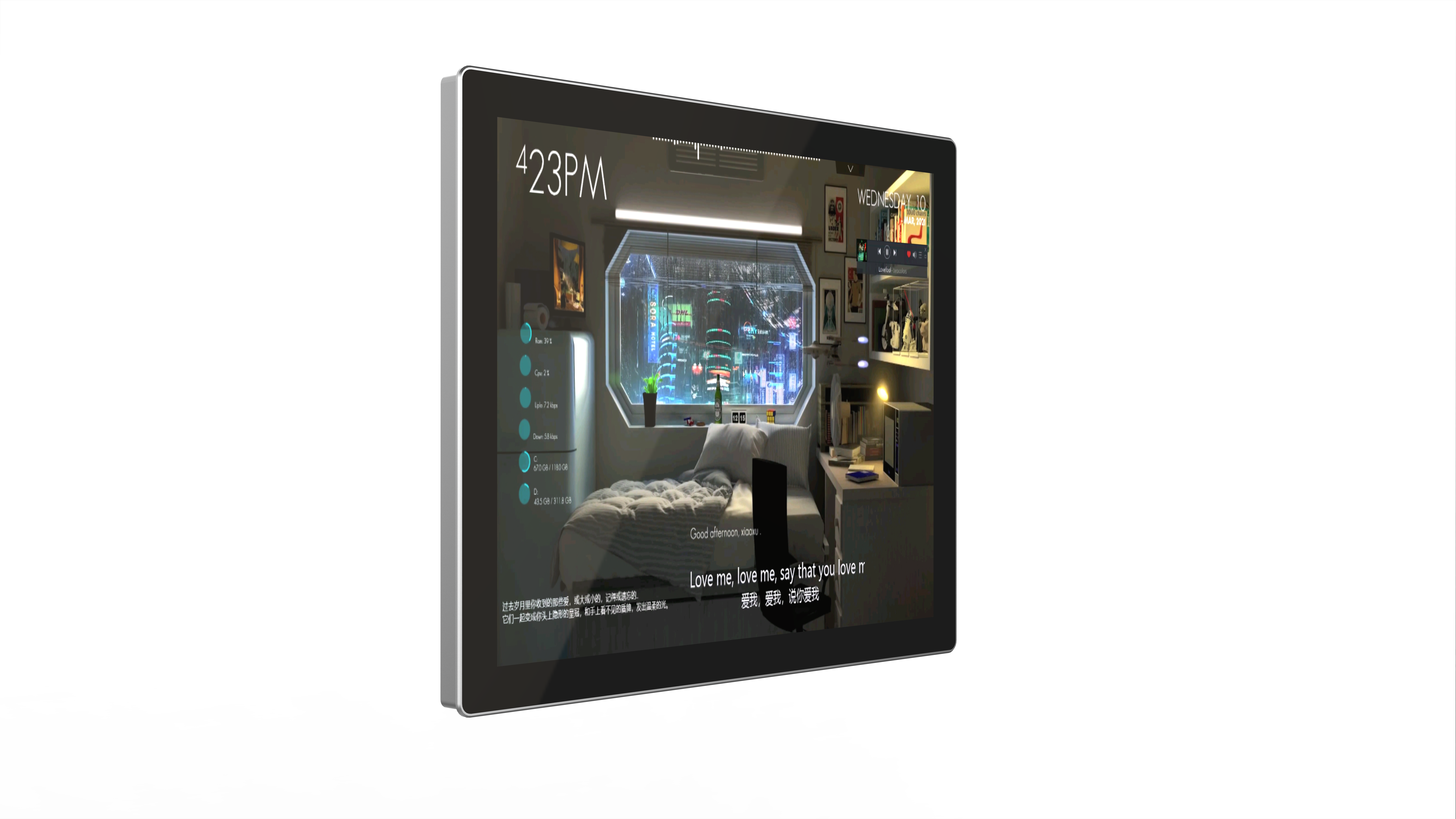

17” industrial Multi Touch panel pc |
|
|
Case/Bezel Color |
Black cover, silver edge |
|
TFT Type |
Industrial LCD with LED backlight |
|
Aspect ratio |
4:3 |
|
Touch Panel |
10 points Industrial capacitive touch panel |
|
Touch response time |
10ms (typical) |
|
Optimal (native) Resolution |
1280×1024 |
|
LCD panel Pixel pitch |
0.296 x 0.296 mm |
|
LCD panel Colors |
16.7 million |
|
LCD panel Brightness |
300 cd/m2 |
|
LCD panel Response Time |
8ms |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle ( Wide ) |
|
|
Horizontal (left/right) |
±85° or 170° total |
|
Vertical (up/down) |
85°(up), 85°(down) or 170° total |
|
CPU |
Intel® Celeron J1900 Quad Core 2.0GHz |
|
storage |
128 G SSD ( optional) |
|
Serial Ports |
2 x COM ports |
|
USB Ports |
4 x USB |
|
LAN |
1 x LAN RJ-45 connector; 2 x Lan optional |
|
DC Power In |
1 x 4-pin connector or Dc Jack 2.5 |
|
Video Port |
2X Audio |
|

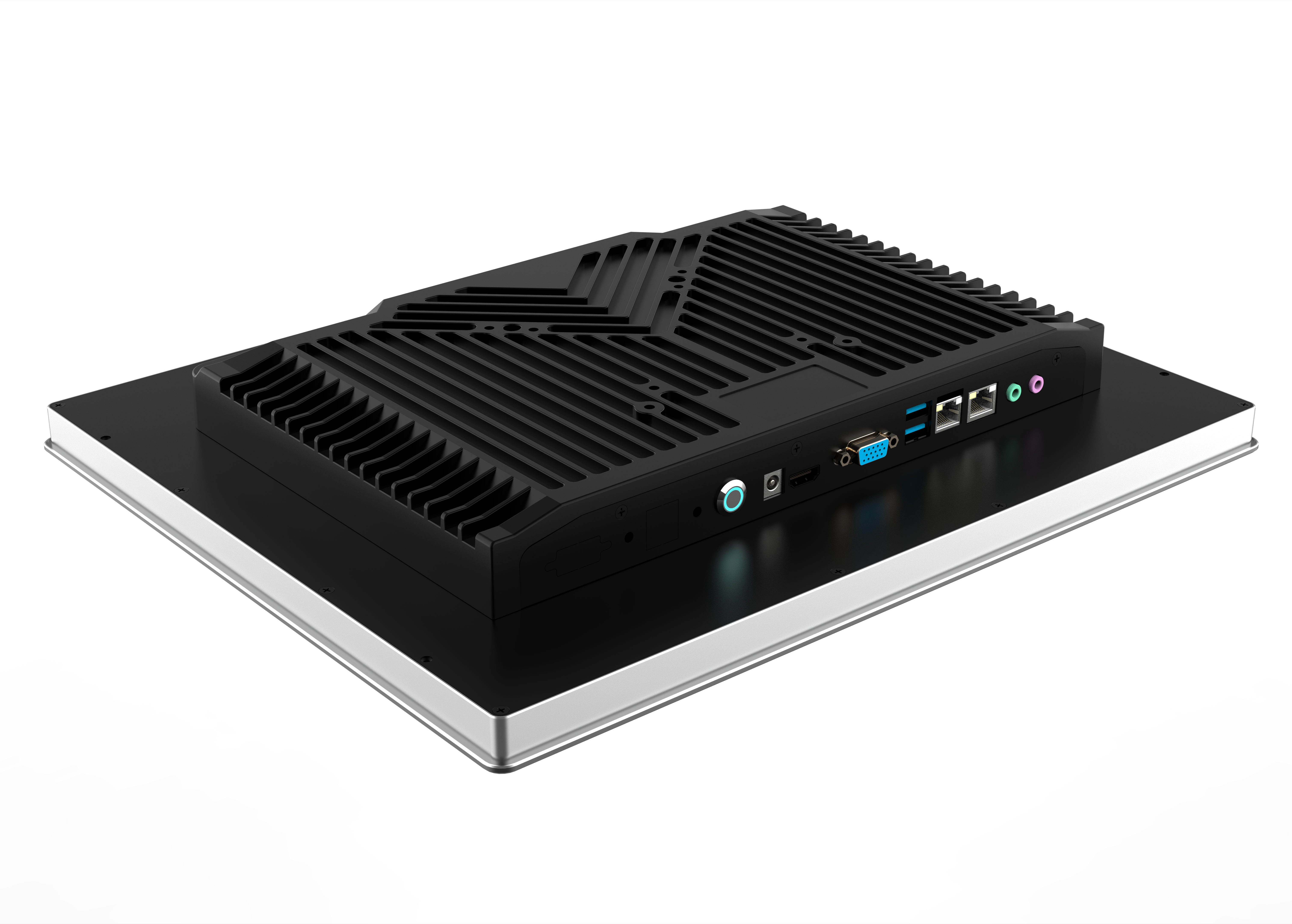

Other Ports |
1x LAN, 1XVGA,1xHD,1XLPT |
|
Internal Sockets & Connectors |
1 x Compact Flash socket (reserved for OEM project) |
|
Power Specification |
DC 12V 5A |
|
Working Environment |
|
|
Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 65°C |
|
Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
|
Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
|
Dimensions |
|
|
Mounting Type |
Embedded Installation |
|
Mechanical dimensions |
384.92 x 317.34 x 53.5mm |
|
Weight (Net) |
7.5 kgs/ piece |
|
Drawings |
Please contact us for details |
Features and Advantages

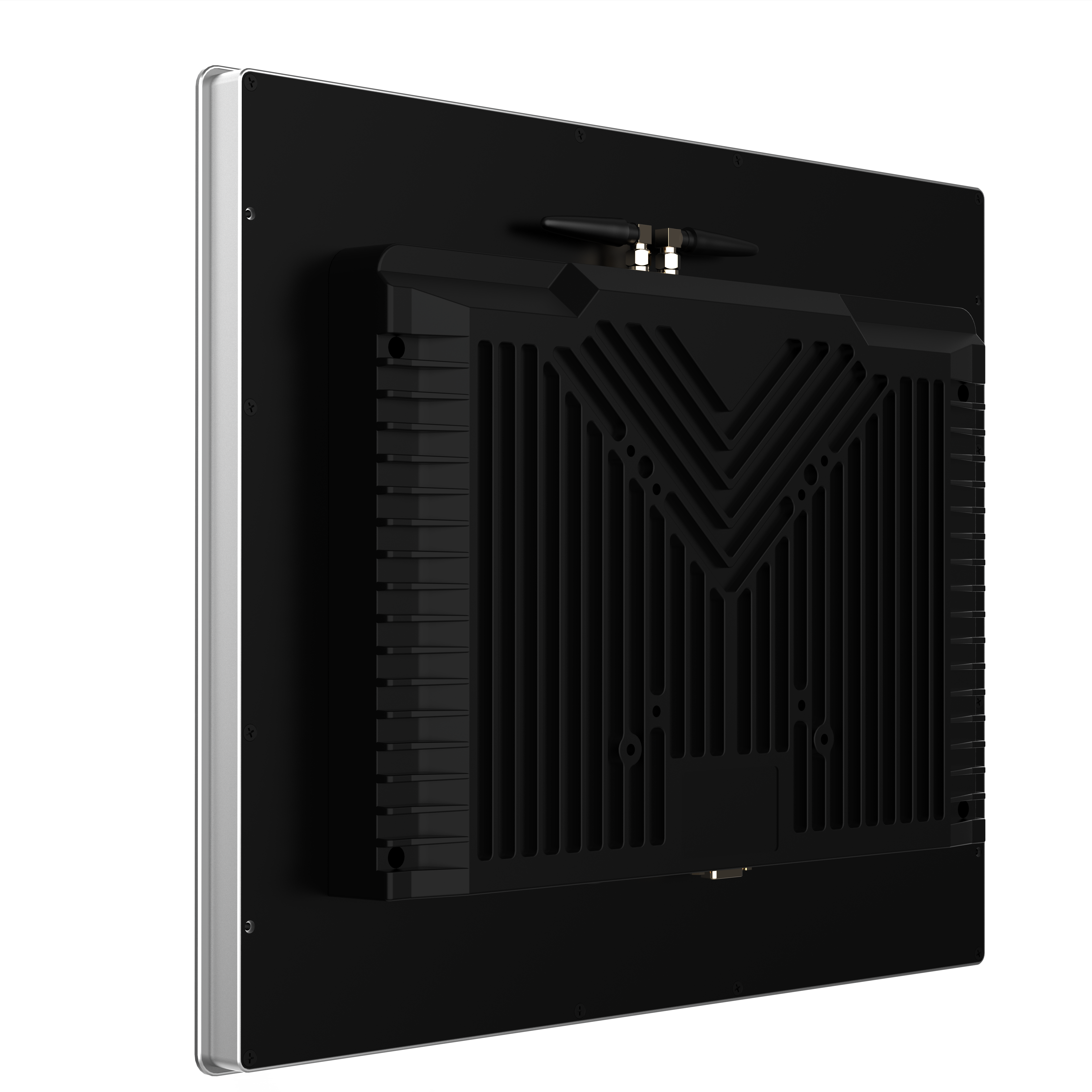

1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. Intel® Celeron J1900 Quad Core 2.0GHZ
4. 17 “1280X1024 Resolution Color TFT LCD Display
5. Fully IP54 Compliant Stainless Steel Chassis front with rugged cover
6. Supports Wide Range DC Power Input (12V)
