Model Number

AXD-17PPC-V3C

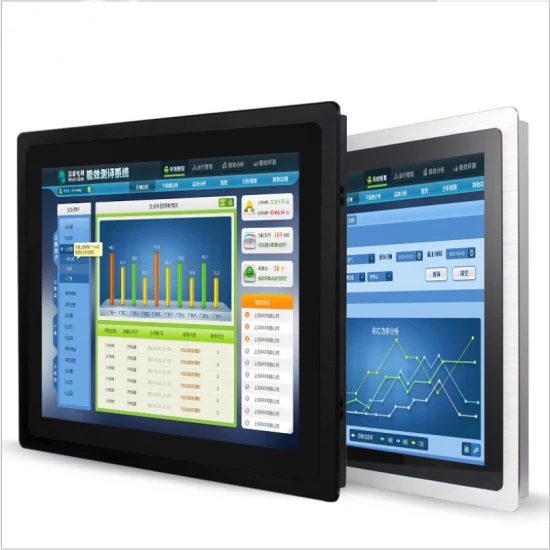

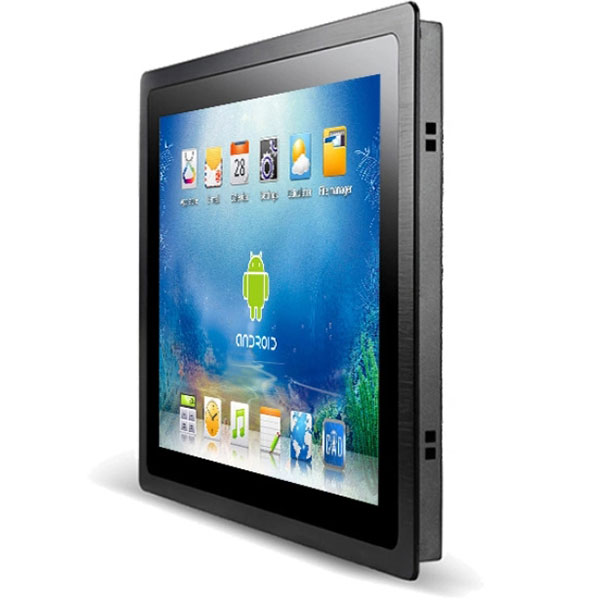

17′ Multi panel pc

Case/Bezel Color

Black

TFT Type

Industrial LCD with LED backlight

Aspect ratio

4:3

Touch Panel

Industrial capacitive touch panel

Touch response time

10ms (typical)

Optimal (native) Resolution

1280×1024

LCD panel Pixel pitch

0.296 x 0.296 mm

LCD panel Colors

16.7 million

LCD panel Brightness

300 cd/m2

LCD panel Response Time

8ms

Contrast Ratio

800:1

Viewing Angle ( Wide )

Horizontal (left/right)

±80° or 160° total

Vertical (up/down)

85°(up), 85°(down) or 170° total

CPU

 Intel® Celeron 1037U Dual Core 1.86GHz

storage

16 G SSD ( optional)

Serial Ports

2 x COM ports

USB Ports

4 x USB

LAN

1 x LAN RJ-45 connector

DC Power In

1 x 4-pin connector

Video Port

2X Audio

Other Ports

 2x LAN, 1XVGA,1xHDMI,1XLPT

Internal Sockets & Connectors

1 x Compact Flash socket (reserved for OEM project)

Power Specification

DC 12V

Working Environment

Temperature

Operating: -10°C to 60°C ;Storage -20°C to 65°C

Operating Humidity

5 ~ 90% RH @40°C (non-condensing

Vibration

5 ~ 500Hz, 3Grms Random (with CF/SSD)

Dimensions

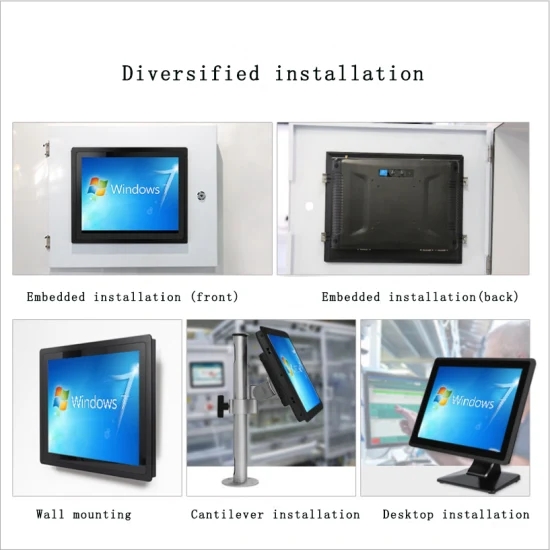

Mounting Type

Embedded Installation

Mechanical dimensions

386.5 x 318.47 x 57.7 mm

Weight (Net)

7.5 kgs/ piece

Drawings

Please contact us for details
