| Active Display Area (mm) | 304.128(H)x228.096(V) |
| Pixel Pitch (mm) | 0.297 x 0.297 |
| Resolution (Pixel) | XGA (1024X768) |
| Brightness (CD/m^2) | 250cd/m^2 |
| Contrast Ratio | 700:1 |
| Viewing Angle (CR >=10) | 160/130 |
Specifications

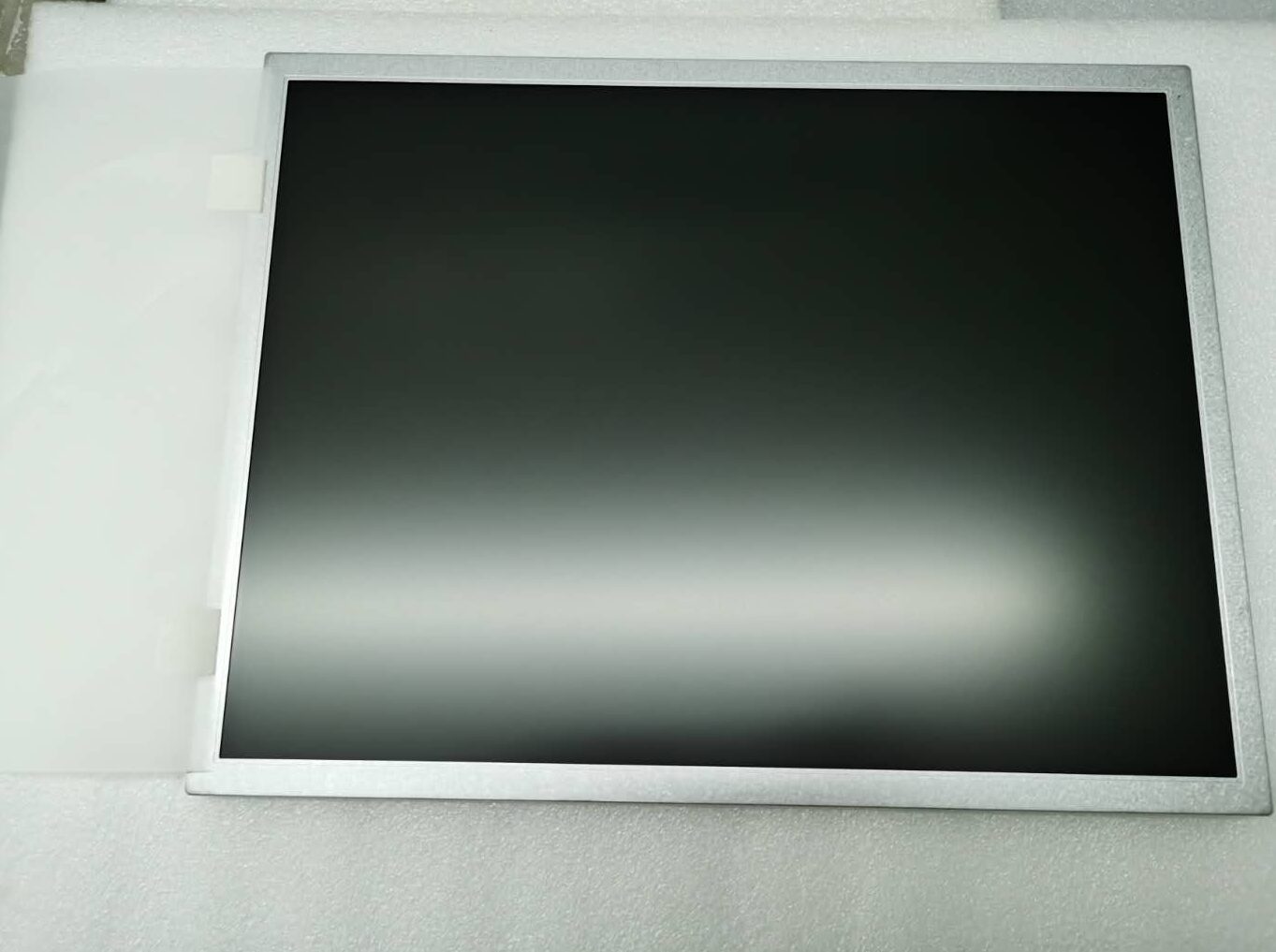

| Display | 15.0 inch industrial LCD screen |
| Active Area | 304.128(H)×228.096(V) |
| Backlight System | led Backlight |
| Brightness | 250nits |
| Contrast Ratio | 700:1 |
| Charateristics | This high-contrast VGA module features brightness and contrast ratings of 300 nits and 600:1, respectively. The module also incorporates color filters optimized for excellent color performance, and anti-glare and 3H hard coatings. |
| Display Mode | Normally White |
| Interface | 16.2M |
| operating Temperature | -30ºC~85ºC |
| Outline dimensions | 326.5(W)×253.5(H)×12(D) |
| Resolution | 1024X768 |
| Respons time | 8ms |
| RoHS | YES |
Features and Advantages
1. New and A grade perfect panels with LED backlight
2.15.0 inch high resolution open Kits are easily for installing in the Panel pcs, outdoor application control , digital player ,campus and industrial terminals etc
