| Display Specifications |
|

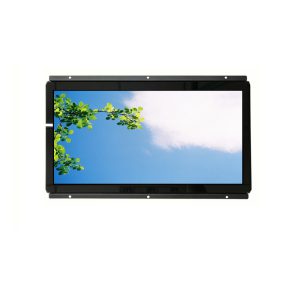

| Display | 15.6" Color TFT industrial Touch monitor |
| Model Name |
AXD-15OPN2P3-V6C |
| Active Display Area (mm) |
344.16(H)x193.59(V) |
| Pixel Pitch (mm) | 0.1795(H)x0.1795(V) |
| Resolution (Pixel) | 1920×1080 |
| Brightness (CD/m^2) | 400nits |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 10.6 W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel( USB Controller) |

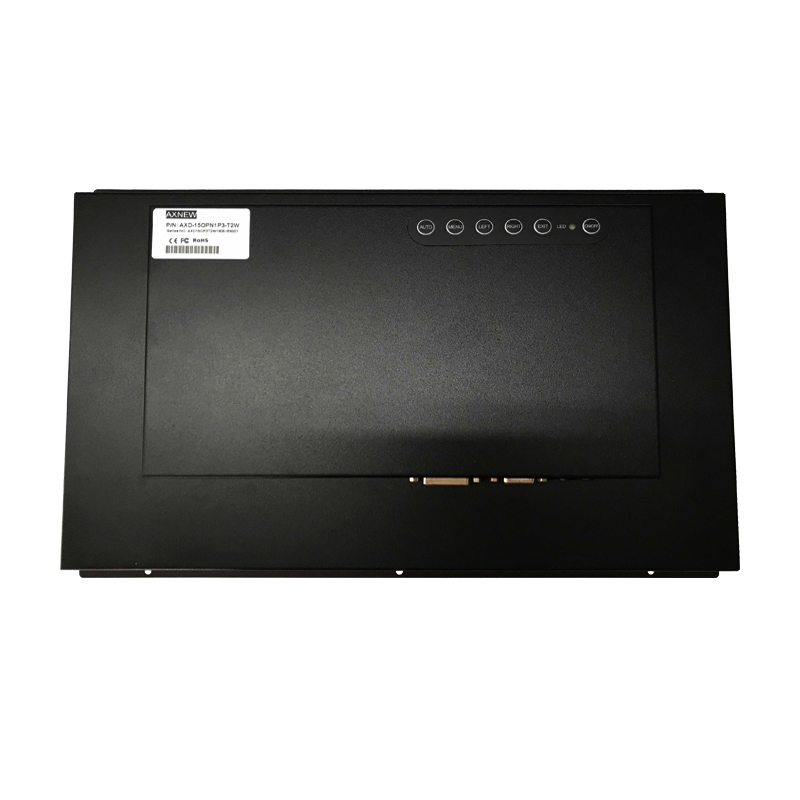

| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,1xDisplay port, 1xHDMI |
| Power Input | 3 pin connector with 24V converter |
| Mechanical Specifications |
|
| Construction | Steel housing & black Color, anti-vandal |
| Dimensions | 397.0x 25270.0×43.0(mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~70℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15.6” industrial LCD with 2mm anti-vandal capacitive touch with display port Input |
