Display Specifications |
|
|
Display |

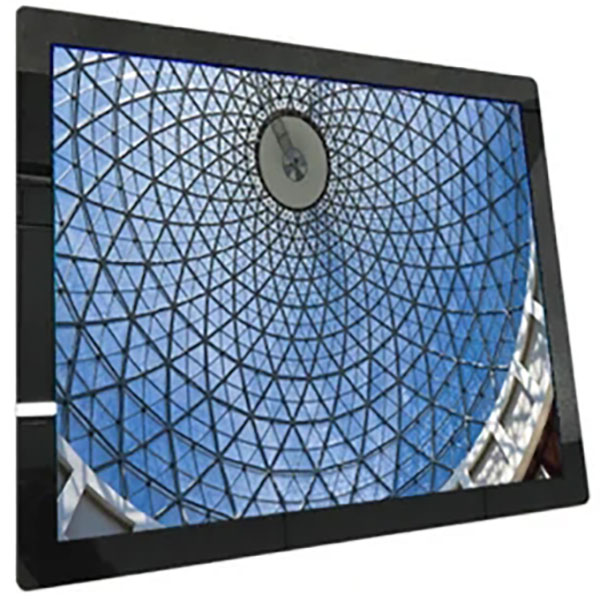

15″ Color TFT Open frame LCD monitor with protective glass |
|
Model Name |
AXD-15OPIP1-VP |
|
Active Display Area (mm) |
304.1(H)x304.1(V) |
|
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
|
Resolution (Pixel) |
XGA (1024X768) 262K/16.2M Color |
|
Brightness (CD/m^2) |
400cd/m^2 |
|
Contrast Ratio |
800:1 |
|
Viewing Angle (CR >=10) |
160/160 |
|
Power consumption |
8.6 W typical, normal operation |
|
Touch Screen |
5 wire Resistive touch USB options(no touch ,only glass) |
|
OSD Control |
On the back side |
|

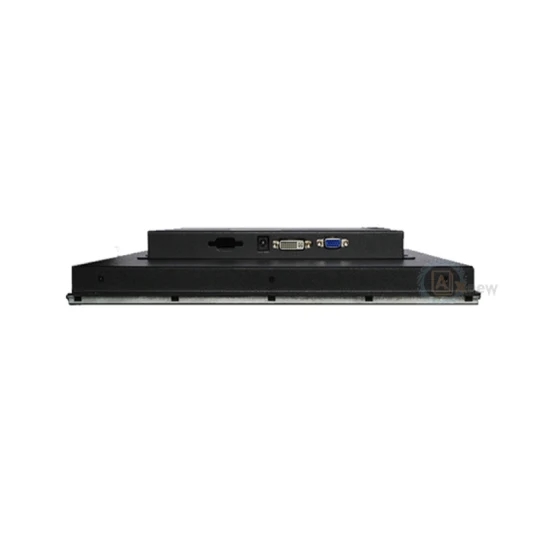

I/O Connectors |
1x12v,1XVGA,DVI-D |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel Metal chassis & Black Color |
|
Dimensions |
364.1 x 288.0x 40.0 (mm) |
|
Mounting |
VESA Mounting 75×75 |
|
Power source |
AC 100~240V/ 12V DC adapter |
|
Environment Specifications |
|
|
Operating Temperature |
-20~80ºC |
|
Storage Temperature |
-30~85ºC |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple panel mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours,-30-85 degrees
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; touch screen options
6. 15 inch open frame monitor with protective for application control , advertising player ,campus and industrial terminals etc
